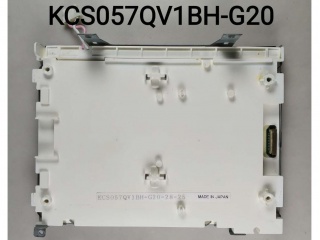

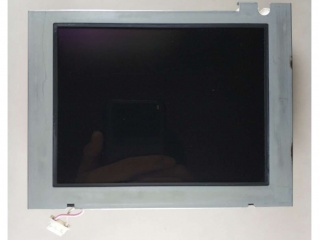

| Onderdeel nommer | KCS057QV1BH-G20 |
| Handelsmerk | Kyocera |
| Grootte | 5.7 |
| Toepassing | Industrial |
| Resolusie | 320×240 |
| Samestelling | LCM, CSTN-LCD |
| Helderheid | |
| CR | 40:1 |
| Kleure | Color |
| Agterlig | 1 |
| Koppelvlak | Parallel |
| vervaardiger | Kyocera |
| model naam | KCS057QV1BH-G20 |
| skerm grootte | 5.7 inch |
| tipe skerm | LCM, CSTN-LCD |
| pixel nommer | 320(RGB)×240 (QVGA) 70PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 115.2 × 86.4 (H×V) |
| buitelyn (mm) | - |
| helderheid | - |
| kontras verhouding | 40 : 1 (Typ.) (TM) |
| kykhoek | 50/50/30/30 (Typ.)(CR≥2) |
| reaksie | 220/110 (Typ.)(Tr/Td) ms |
| goeie uitsig by | - |
| werksmodus | STN, Normally Black, Transmissive |
| kleurdiepte | Color |
| agterlig | 1 pcs CCFL , 40K hours , No Driver |
| massa | - |
| gebruik vir | Industrial |
| herlaaitempo | - |
| raakskerm | Without |
| sein tipe | Parallel Data (1ch, 8-bit) , Connector 15 pins |
