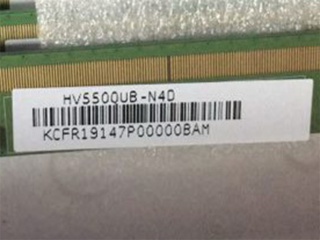

| Onderdeel nommer | HV550QUB-N4D |
| Handelsmerk | BOE |
| Grootte | 55 |
| Toepassing | TV Sets |
| Resolusie | 38403×2160 |
| Samestelling | a-Si TFT-LCD , CELL |
| Helderheid | |
| CR | 1200:1 |
| Kleure | 16.7M |
| Agterlig | No |
| Koppelvlak | |
| paneel handelsmerk | BOE |
| paneel grootte | 55" |
| resolusie | 3840(3)×2160, UHD, 80PPI |
| vertoon area | 1209.6(W)×680.4(H) mm |
| omtrek grootte | 1219.6(W)×691.9(H) ×1.32(D) mm |
| helderheid | 0 cd/m² |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| beste uitsig op | Symmetry |
| glas diepte | 0.50+0.50 mm |
| kleure vertoon | 16.7M 76% NTSC |
| frekwensie | 60Hz |
| gewig | 2.70Kgs (Typ.) |
| paneel model | HV550QUB-N4D |
| paneel tipe | a-Si TFT-LCD , CELL |
| pixel formaat | RGBW Vertical Stripe |
| ring opening | - |
| oppervlak | Antiglare (Haze 1%), Hard coating (3H) |
| kontras verhouding | 1200:1 (Typ.) (TM) |
| vertoonmodus | ADS, Normally Black, Transmissive |
| reaksie tyd | 8 (Typ.)(G to G) |
| deurlaatbaarheid | 8% (Typ.) |
| tipe lamp | No B/L |
| raakskerm | Without |
| aansoek | TV Sets |
