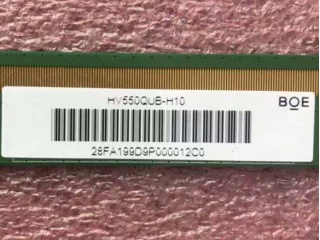

| Onderdeel nommer | HV550QUB-H10 |
| Handelsmerk | BOE |
| Grootte | 55 |
| Toepassing | TV Sets |
| Resolusie | 3840×2160 |
| Samestelling | CELL, a-Si TFT-LCD |
| Helderheid | |
| CR | 1200:1 |
| Kleure | 1.07B |
| Agterlig | No |
| Koppelvlak | V-by-One |
| vervaardiger | BOE |
| model naam | HV550QUB-H10 |
| skerm grootte | 55 inch |
| tipe skerm | CELL, a-Si TFT-LCD |
| pixel nommer | 3840(RGB)×2160 (UHD) 80PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 1209.6 × 680.4 (H×V) |
| buitelyn (mm) | 1225.2 × 696.7 × 1.34 (H×V×D) |
| ring area (mm) | - |
| behandeling | Antiglare (Haze 1%), Hard coating (3H) |
| helderheid | 0 cd/m² |
| kontras verhouding | 1200 : 1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| reaksie | 8 (Typ.)(G to G) ms |
| goeie uitsig by | Symmetry |
| werksmodus | ADS, Normally Black, Transmissive |
| glas dikte | 0.50+0.50 mm |
| deurlaatbaarheid | 5.4% (Typ.)(with Polarizer) |
| kleurdiepte | 1.07B NTSC |
| agterlig | No B/L |
| massa | 2.60Kgs (Typ.) |
| gebruik vir | TV Sets |
| herlaaitempo | 120Hz |
| raakskerm | Without |
| bestuurder ic lys | Built-in COF 6 source chips |
| sein tipe | V-by-One 8 lane , Connector 51 pins |
| spanningstoevoer | 12.0V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
