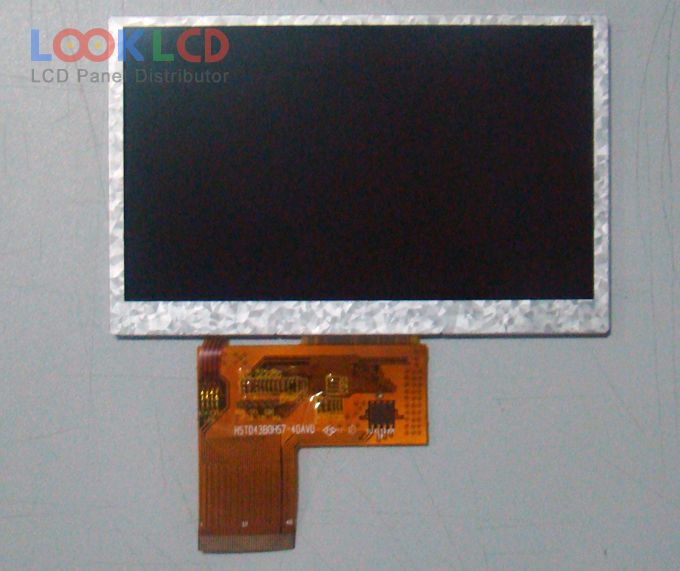

| Onderdeel nommer | HST043BOH57-40AV0 |
| Handelsmerk | Other |
| Grootte | 4.3 |
| Toepassing | PND |
| Resolusie | 480×272 |
| Samestelling | LCM |
| Helderheid | |
| CR | 200:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | TTL |
| paneel handelsmerk | No Brand |
| paneel model | HST043BOH57-40AV0 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 4.3 inch |
| resolusie | 480(RGB)×272 , WQVGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 95.04×53.856 mm |
| buitelyn | 105.7×67.25 mm |
| oppervlak | |
| helderheid | |
| kontras verhouding | 200:1 (Typ.) |
| kleure vertoon | 16.7M (8-bit), CIE193162% |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| kykhoek | 40/40/60/15 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 7S1PWLEDWithout Driver |
| sein koppelvlak | Parallel RGB (1 ch, 8-bit), 40 pins |
| insetspanning | 1.8/2.8V (Typ.)(VDD/VCI) |
| rohs: | |
| aansoek | PND |
