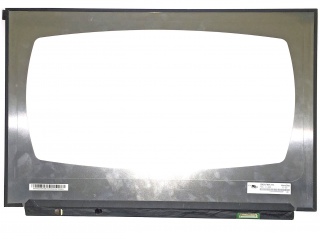

| Onderdeel nommer | HSD170PUW1-B00 |
| Handelsmerk | HannStar |
| Grootte | 17.0 |
| Toepassing | Laptop |
| Resolusie | 1920×1200 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| handelsmerk | HannStar |
| model | HSD170PUW1-B00 |
| diagonale grootte | 17.0 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 1920(RGB)×1200 [WUXGA] 133PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 365.184(H)×228.24(V) mm |
| buitelyn dof. | 373.248(H)×241.38(V) ×6(D) mm |
| ring area | - |
| behandeling | Antiglare |
| helderheid | 270 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| kykhoek | 80/80/80/80 (Typ.)(CR≥10) |
| bedryfsmodus | IPS Pro, Normally Black, Transmissive |
| ondersteun kleur | 16.7M 95% DCI-P3 |
| Ligbron | WLED , 15K hours , With LED Driver |
| vorm styl | - |
| ontwerp vir | Laptop |
| raamkoers | 60Hz |
| raakpaneel | Without |
| koppelvlak tipe | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
