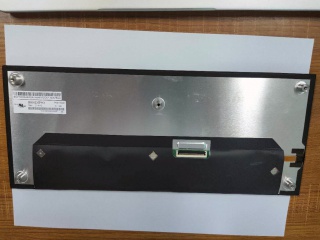

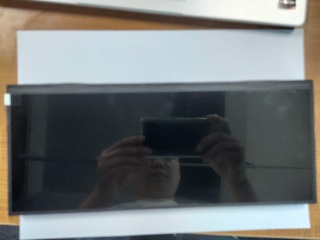

| Onderdeel nommer | HSD123JPW3-A10 |
| Handelsmerk | HannStar |
| Grootte | 12.3 |
| Toepassing | Outdoor High Brightn |
| Resolusie | 1920×720 |
| Samestelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 1500:1 |
| Kleure | 16.7M |
| Agterlig | 11S4P |
| Koppelvlak | LVDS |
| vervaardiger | HannStar |
| model naam | HSD123JPW3-A10 |
| skerm grootte | 12.3 inch |
| tipe skerm | LCM, a-Si TFT-LCD |
| pixel nommer | 1920(RGB)×720 167PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 292.032 × 109.512 (H×V) |
| buitelyn (mm) | 302 × 125.4 × 14.2 (H×V×D) |
| ring area (mm) | - |
| behandeling | Glare (Haze 0%), Hard coating |
| helderheid | 850 cd/m² (Typ.) |
| kontras verhouding | 1500 : 1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| reaksie | 25 (Typ.)(Tr+Td) ms |
| goeie uitsig by | Symmetry |
| werksmodus | IPS Pro, Normally Black, Transmissive |
| kleurdiepte | 16.7M 75% NTSC |
| agterlig | 11S4P WLED , 30K hours , No Driver |
| massa | 345/378g (Typ./Max.) |
| gebruik vir | Outdoor High Brightness Automotive Display |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | LVDS (2 ch, 8-bit) , Connector 50 pins |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| AV123Z7M-N11 | BOE | 12.3 | 1920×720 |
| C123HAN01.0 | AUO | 12.3 | 1920×720 |
| C123HAN01.1 | AUO | 12.3 | 1920×720 |
| LAM1233548D | JDI | 12.3 | 1920×720 |
| LD123UX1-SMA1 | LG Display | 12.3 | 1600×1200 |
| LQ123K1LG03 | SHARP | 12.3 | 1280×480 |
| LQ123K3LG01 | SHARP | 12.3 | 1280×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
| TJ123NP01CA | Innolux | 12.3 | 1280×480 |
| TX31D200VM0BAA | KOE | 12.3 | 1280×480 |
