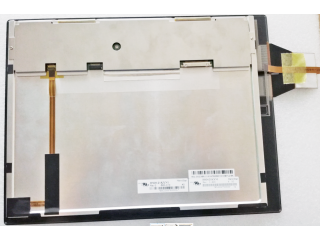

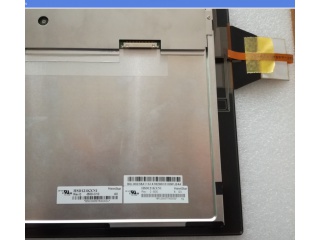

| Onderdeel nommer | HSD121KXN1-B00-C10 |
| Handelsmerk | HannStar |
| Grootte | 12.1 |
| Toepassing | Automotive Display |
| Resolusie | 1024×768 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 900:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| paneel handelsmerk | HannStar |
| paneel grootte | 12.1" |
| resolusie | 1024(RGB)×768, XGA, 105PPI |
| vertoon area | 245.76(W)×184.32(H) mm |
| helderheid | 600 cd/m² (Typ.) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| beste uitsig op | Symmetry |
| kleure vertoon | 16.7M 72% NTSC |
| frekwensie | 60Hz |
| gewig | - |
| paneel model | HSD121KXN1-B00-C10 |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| kontras verhouding | 900:1 (Typ.) (TM) |
| vertoonmodus | IPS Pro, Normally Black, Transmissive |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| tipe lamp | WLED , 30K hours , With LED Driver |
| raakskerm | Embeded Touch |
| aansoek | Automotive Display |
