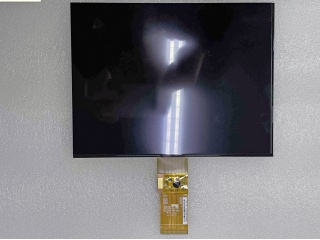

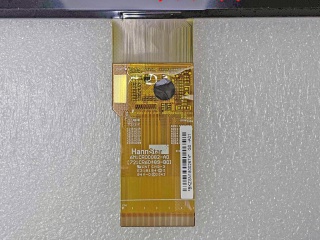

| Onderdeel nommer | HSD104IXN1-A01-0299 |
| Handelsmerk | HannStar |
| Grootte | 10.4 |
| Toepassing | Industrial Automotiv |
| Resolusie | 1024×768 |
| Samestelling | CELL , a-Si TFT-LC |
| Helderheid | |
| CR | 900:1 |
| Kleure | 262K/16.2M |
| Agterlig | No |
| Koppelvlak | |
| vervaardiger | HannStar |
| skerm grootte | 10.4 inch |
| pixel nommer | 1024(RGB)×768 (XGA) 123PPI |
| aktiewe area (mm) | 211.2 × 158.4 (H×V) |
| ring area (mm) | - |
| helderheid | 0 (cd/m²) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| goeie uitsig by | Symmetry |
| glas dikte | 0.50+0.50 mm |
| kleurdiepte | 262K/16.2M 70% NTSC |
| massa | 100±10g |
| herlaaitempo | 60Hz |
| model naam | HSD104IXN1-A01-0299 |
| tipe skerm | CELL , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 220.9 × 168.75 × 1.3 (H×V×D) |
| behandeling | Antiglare, Hard coating (3H) |
| kontras verhouding | 900 : 1 (Typ.) (TM) |
| werksmodus | IPS Pro, Normally Black, Transmissive |
| reaksie | 30 (Typ.)(Tr+Td) ms |
| deurlaatbaarheid | 4.68% (Typ.)(with Polarizer) |
| agterlig | No B/L |
| gebruik vir | Industrial Automotive Display |
| raakskerm | Without |
| AA104XD12--G1 | Mitsubishi | 10.4 | 1024×768 |
| AM-1024768MTMQW-00H | AMPIRE | 10.4 | 1024×768 |
| DLC1040ABG-2 | Other | 10.4 | 800×600 |
| HX104X02-100 | HYDIS | 10.4 | 1024×768 |
| LQ104V1LG61 | SHARP | 10.4 | 640×480 |
| LQ10D41 | SHARP | 10.4 | 640×480 |
| LTM10C209AF | TOSHIBA | 10.4 | 640×480 |
| NL10276AC20-03 | NLT | 10.4 | 1024×768 |
| NL6448BC33-49 | NLT | 10.4 | 640×480 |
| NL8060BC26-17 | NLT | 10.4 | 800×600 |
