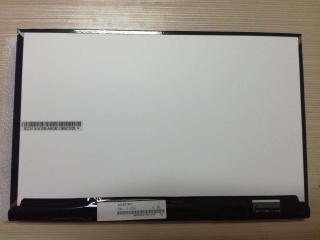

| Onderdeel nommer | HSD101PUW1-C30 |
| Handelsmerk | HannStar |
| Grootte | 10.1 |
| Toepassing | Pad & Tablet |
| Resolusie | 1920×1200 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| handelsmerk | HannStar |
| model | HSD101PUW1-C30 |
| diagonale grootte | 10.1 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 1920(RGB)×1200 [WUXGA] 225PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 216.576(H)×135.36(V) mm |
| buitelyn dof. | - |
| helderheid | - |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| bedryfsmodus | IPS Pro, Normally Black, Transmissive |
| ondersteun kleur | 16.7M 50% NTSC |
| Ligbron | WLED , 15K hours |
| gewig | - |
| ontwerp vir | Pad & Tablet |
| raamkoers | 60Hz |
| raakpaneel | Without |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
