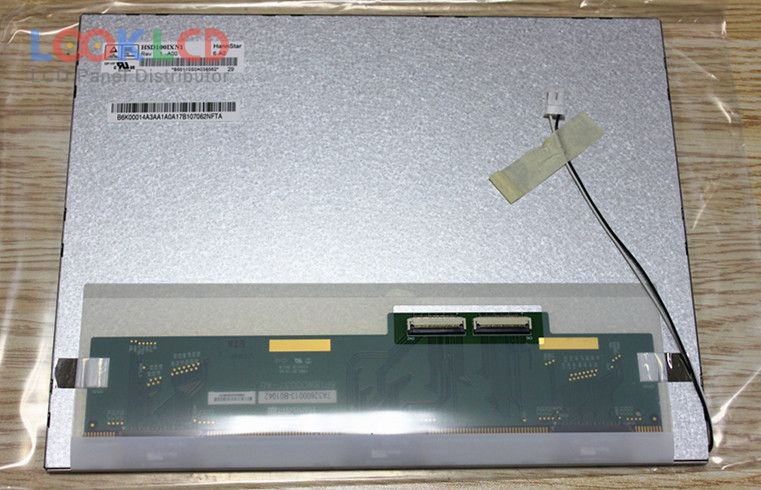

| Onderdeel nommer | HSD100IXN1-A00 |
| Handelsmerk | HannStar |
| Grootte | 10.0 |
| Toepassing | DPF |
| Resolusie | 1024×768 |
| Samestelling | LCM |
| Helderheid | 250 |
| CR | 600:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | TTL |
| paneel handelsmerk | HannStar |
| paneel model | HSD100IXN1-A00 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 10.0 inch |
| resolusie | 1024(RGB)×768 , XGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 202.752×152.064 mm |
| buitelyn | 215.5×166.5 mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 250 cd/m² (Typ.) |
| kontras verhouding | 600:1 (Typ.) |
| kleure vertoon | 262K (6-bit) |
| reaksie tyd | 2.4/5.6(Typ.)(Tr/Td) |
| kykhoek | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 3S11PWLEDWithout Driver |
| sein koppelvlak | TTL (1 ch, 6-bit), 60 pins |
| insetspanning | 3.3/9.48/17/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| aansoek | DPF |
