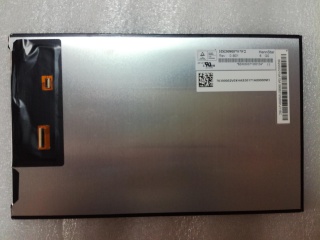

| Onderdeel nommer | HSD080PWW2-B01 |
| Handelsmerk | HannStar |
| Grootte | 8.0 |
| Toepassing | Pad & Tablet Ind |
| Resolusie | 800×1280 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| handelsmerk | HannStar |
| model | HSD080PWW2-B01 |
| diagonale grootte | 8.0 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 800(RGB)×1280 [WXGA] 188PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 107.64(H)×172.224(V) mm |
| buitelyn dof. | 114.8(H)×184.7(V) ×3.71(D) mm |
| ring area | - |
| behandeling | Hard coating (3H) |
| helderheid | 450 cd/m² (Typ.) |
| kontras verhouding | 800:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedryfsmodus | IPS Pro, Normally Black, Transmissive |
| ondersteun kleur | 16.7M 60% NTSC |
| Ligbron | WLED [7S3P] , 15K hours , W/O Driver |
| gewig | 100g (Typ.) |
| ontwerp vir | Pad & Tablet Industrial |
| raamkoers | 60Hz |
| raakpaneel | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -30 ~ 65 °C |
