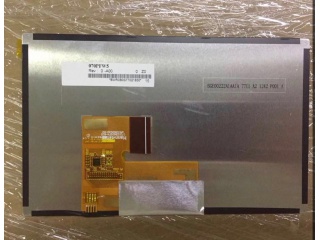

| Onderdeel nommer | HSD070PFW5-A00 |
| Handelsmerk | HannStar |
| Grootte | 7.0 |
| Toepassing | Pad & Tablet |
| Resolusie | 1024×600 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | 3S7P |
| Koppelvlak | MIPI |
| vervaardiger | HannStar |
| model naam | HSD070PFW5-A00 |
| skerm grootte | 7.0 inch |
| tipe skerm | LCM , a-Si TFT-LCD |
| pixel nommer | 1024(RGB)×600 (WSVGA) 169PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 153.6 × 90 (H×V) |
| buitelyn (mm) | 161.16 × 100.97 × 5.04 (H×V×D) |
| ring area (mm) | - |
| behandeling | Hard coating |
| helderheid | 550 cd/m² (Typ.) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| reaksie | 13/15 (Typ.)(Tr/Td) ms |
| goeie uitsig by | Symmetry |
| werksmodus | IPS Pro, Normally Black, Transmissive |
| kleurdiepte | 16.7M 50% NTSC |
| agterlig | 3S7P WLED , 10K hours , With LED Driver |
| massa | 75.0/85.0g (Typ./Max.) |
| gebruik vir | Pad & Tablet |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | MIPI (4 data lanes) , 40 pins Connector |
| spanningstoevoer | 1.8/3.3/10.7/17/-10V (Typ.)(VDD1/VDD2/AVDD/VGH/VGL) |
| maks. graderings | Storage Temp.: -20 ~ 65 °C Operating Temp.: -10 ~ 60 °C |
