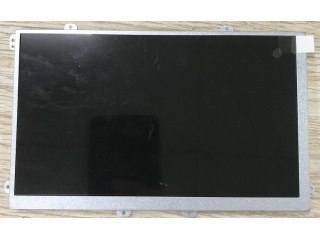

| Onderdeel nommer | HSD070IFW1-B10 |
| Handelsmerk | HannStar |
| Grootte | 7.0 |
| Toepassing | Automotive Display |
| Resolusie | 1024×600 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| paneel handelsmerk | HannStar |
| paneel grootte | 7.0" |
| resolusie | 1024(RGB)×600, WSVGA, 170PPI |
| vertoon area | 153.6(W)×86.64(H) mm |
| helderheid | - |
| kykhoek | - |
| beste uitsig op | - |
| kleure vertoon | 16.7M |
| frekwensie | - |
| gewig | - |
| paneel model | HSD070IFW1-B10 |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| kontras verhouding | 800:1 (Typ.) (TM) |
| vertoonmodus | TN, Normally White, Transmissive |
| reaksie tyd | - |
| tipe lamp | WLED |
| raakskerm | Without |
| aansoek | Automotive Display |
| HSD070I651-C02 | HannStar | 7.0 | 480×234 |
| HSD070I651-F20 | HannStar | 7.0 | 480×234 |
| HSD070IDW1-A00 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A20 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A21 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A30 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-E11 | HannStar | 7.0 | 800×480 |
| HSD070IFW1-A00 | HannStar | 7.0 | 1024×600 |
| HSD070IFW1-B00 | HannStar | 7.0 | 1024×600 |
| HSD070ISN1-D00 | HannStar | 7.0 | 800×600 |
