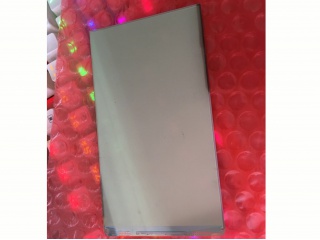

| Onderdeel nommer | H546DLK01.0 |
| Handelsmerk | AUO |
| Grootte | 5.5 |
| Toepassing | Mobile Phone |
| Resolusie | 1080×1920 |
| Samestelling | AM-OLED , OLED |
| Helderheid | |
| CR | 10000:1 |
| Kleure | 16.7M |
| Agterlig | self |
| Koppelvlak | MIPI |
| paneel handelsmerk | AUO |
| paneel grootte | 5.5" |
| resolusie | 1080(RGB)×1920, FHD, 403PPI |
| vertoon area | 68.04(W)×120.96(H) mm |
| omtrek grootte | 70.84(W)×128.01(H) ×0.92(D) mm |
| helderheid | 350 cd/m² (Typ.) |
| kykhoek | 80/80/80/80 (Min.)(CR≥1600) |
| beste uitsig op | Symmetry |
| kleure vertoon | 16.7M 100% NTSC |
| frekwensie | 100Hz |
| bestuurder ic | COG Built-in RM69071 |
| paneel gewig | - |
| sein koppelvlak | MIPI (4 data lanes) |
| insetspanning | 1.8/3.1/5.8/4.6/-2.9V (Typ.)(IOVCC/VCI/AVDD/OVDD/OVSS) |
| omgewing | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| paneel model | H546DLK01.0 |
| paneel tipe | AM-OLED , OLED |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| oppervlak | Hard coating (3H) |
| kontras verhouding | 10000:1 (Min.) (TM) |
| vertoonmodus | - |
| reaksie tyd | - |
| tipe lamp | self |
| raakskerm | Embeded Touch |
| aansoek | Mobile Phone |
