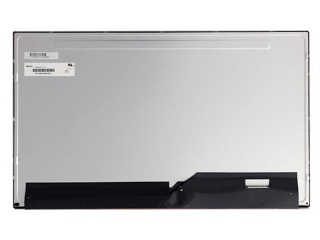

| Onderdeel nommer | G238HCJ-L01 |
| Handelsmerk | Innolux |
| Grootte | 23.8 |
| Toepassing | Industrial |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| handelsmerk | Innolux |
| model | G238HCJ-L01 |
| diagonale grootte | 23.8 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 1920(RGB)×1080 [FHD] 92PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 527.04(H)×296.46(V) mm |
| buitelyn dof. | 543(H)×317.4(V) mm |
| ring area | 530.2(H)×299.6(V) mm |
| behandeling | Antiglare (Haze 25%), Hard coating (3H) |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 8/7 (Typ.)(Tr/Td) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| bedryfsmodus | AAS, Normally Black, Transmissive |
| ondersteun kleur | 16.7M 72% NTSC |
| Ligbron | WLED , 30K hours , W/O Driver |
| gewig | 2.71Kgs (Typ.) |
| ontwerp vir | Industrial |
| raamkoers | 60Hz |
| raakpaneel | Without |
| koppelvlak tipe | LVDS (2 ch, 8-bit) , 30 pins Connector |
| kragtoevoer | 5.0±0.5V |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| G238HAN01.0 | AUO | 23.8 | 1920×1080 |
| LM238WF1-SLK1 | LG Display | 23.8 | 1920×1080 |
| LM238WF2-SSF1 | LG Display | 23.8 | 1920×1080 |
| LM238WF2-SSG2 | LG Display | 23.8 | 1920×1080 |
| LM238WF2-SSK1 | LG Display | 23.8 | 1920×1080 |
| LM238WQ1-SLA1 | LG Display | 23.8 | 2560×1440 |
| M238DAN01.1 Q0 | AUO | 23.8 | 2560×1440 |
| M238HAN01.0 | AUO | 23.8 | 1920×1080 |
| MV238FHM-N10 | BOE | 23.8 | 1920×1080 |
| MV238QUM-N20 | BOE | 23.8 | 3840×2160 |
