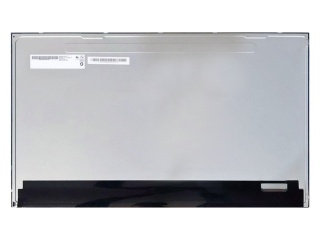

| Onderdeel nommer | G215HAN01.201 |
| Handelsmerk | AUO |
| Grootte | 21.5 |
| Toepassing | Industrial Medical I |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | 12S4P |
| Koppelvlak | LVDS |
| paneel handelsmerk | AUO |
| paneel model | G215HAN01.201 |
| paneel grootte | 21.5" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1920(RGB)×1080, FHD, 102PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 476.064(W)×267.786(H) mm |
| ring opening | 479.8(W)×271.3(H) mm |
| omtrek grootte | 497.6(W)×292.2(H) ×11(D) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 300 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| vertoonmodus | AHVA, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 12/10 (Typ.)(Tr/Td) |
| kleure vertoon | 16.7M 99% sRGB |
| tipe lamp | 12S4P WLED , 50K hours , Without Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| paneel gewig | 1.74Kgs (Typ.) |
| aansoek | Industrial Medical Imaging |
| sein koppelvlak | LVDS (2 ch, 8-bit) , 30 pins Connector |
| insetspanning | 5.0V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
