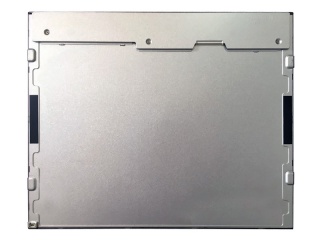

| Onderdeel nommer | G190ETN01.8 |
| Handelsmerk | AUO |
| Grootte | 19.0 |
| Toepassing | Industrial Outdoor H |
| Resolusie | 1280×1024 |
| Samestelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| vervaardiger | AUO |
| model naam | G190ETN01.8 |
| skerm grootte | 19.0 inch |
| tipe skerm | LCM, a-Si TFT-LCD |
| pixel nommer | 1280(RGB)×1024 (SXGA) 86PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 376.32 × 301.056 (H×V) |
| buitelyn (mm) | 396 × 324 (H×V×D) |
| ring area (mm) | 379.72 × 304.46 (H×V) |
| behandeling | Antiglare, Hard coating (3H) |
| helderheid | 800 cd/m² (Typ.) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| kykhoek | 85/85/80/80 (Typ.)(CR≥10) |
| reaksie | 7/3 (Typ.)(Tr/Td) ms |
| goeie uitsig by | - |
| werksmodus | TN, Normally White, Transmissive |
| kleurdiepte | 16.7M 70% NTSC |
| agterlig | WLED , 50K hours , No Driver |
| massa | 1.80Kgs (Typ.) |
| gebruik vir | Industrial Outdoor High Brightness |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| Storage Temp.: -30 ~ 70 °C Operating Temp.: -30 ~ 70 °C |
