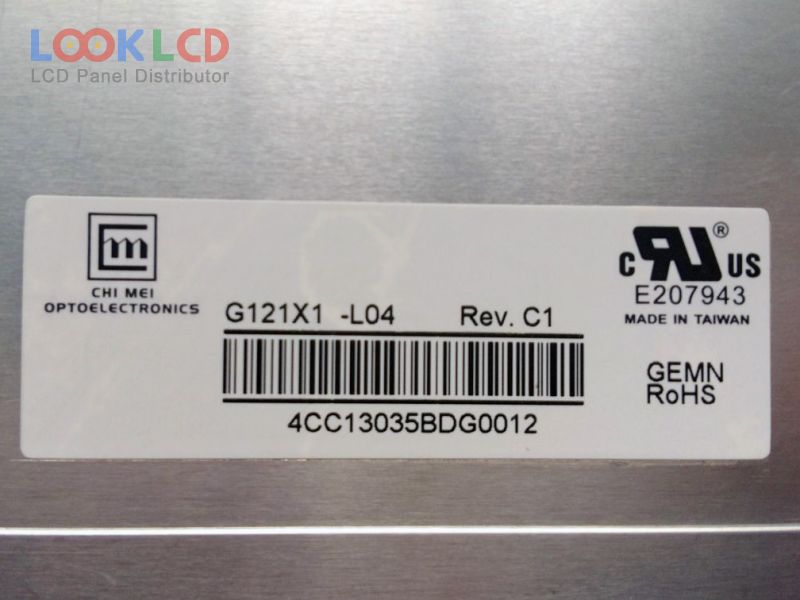

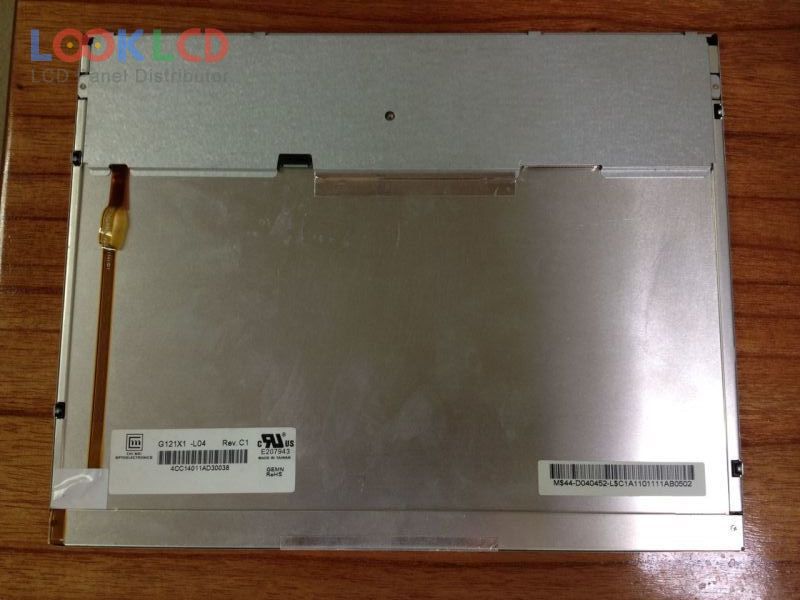

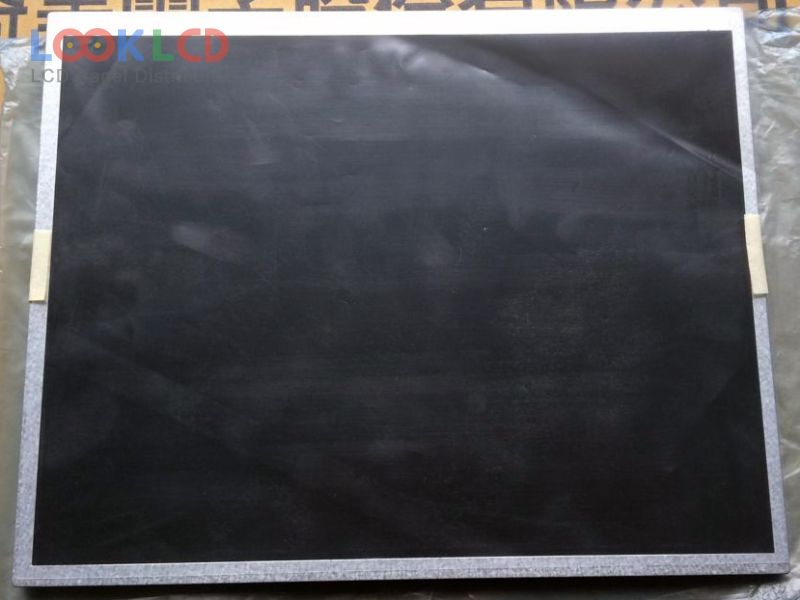

| Onderdeel nommer | G121X1-L04 |
| Handelsmerk | Innolux |
| Grootte | 12.1 |
| Toepassing | CNS |
| Resolusie | 1024×768 |
| Samestelling | LCM |
| Helderheid | 500 |
| CR | 700:1 |
| Kleure | 262K/16.2M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | CMO |
| paneel model | G121X1-L04 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 12.1 inch |
| resolusie | 1024(RGB)×768 , XGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 245.76×184.32 mm |
| buitelyn | 260.5×204×7.7 mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 500 cd/m² (Typ.) |
| kontras verhouding | 700:1 (Typ.) |
| kleure vertoon | 262K/16.2M (6-bit / 6-bit + FRC), CIE193163% |
| reaksie tyd | 5/11 (Typ.)(Tr/Td) |
| kykhoek | 80/80/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | WLEDEmbedded (LED Driver) |
| sein koppelvlak | LVDS (1 ch, 6/8-bit), 20 pins |
| insetspanning | 3.3/5.0V (Typ.) |
| aansoek | CNS |
