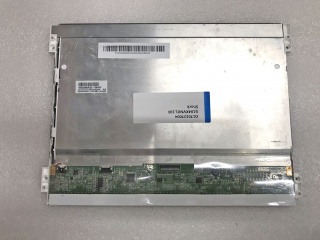

| Onderdeel nommer | G104XVN01.1 |
| Handelsmerk | AUO |
| Grootte | 10.4 |
| Toepassing | Industrial |
| Resolusie | 1024×768 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 3000:1 |
| Kleure | 262K/16.2M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | AUO |
| paneel model | G104XVN01.1 |
| paneel grootte | 10.4" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1024(RGB)×768, XGA, 123PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 210.4(W)×157.8(H) mm |
| ring opening | 215.4(W)×161.8(H) mm |
| omtrek grootte | 238.6(W)×175.8(H) ×7(D) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | - |
| kontras verhouding | 3000:1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| vertoonmodus | AMVA3, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 20/10 (Typ.)(Tr/Td) |
| kleure vertoon | 262K/16.2M |
| tipe lamp | WLED , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| paneel gewig | - |
| aansoek | Industrial |
| sein koppelvlak | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| insetspanning | 3.3V (Typ.) |
| G104X1-L01 | Innolux | 10.4 | 1024×768 |
| G104X1-L02 | Innolux | 10.4 | 1024×768 |
| G104X1-L03 | Innolux | 10.4 | 1024×768 |
| G104X1-L04 | Innolux | 10.4 | 1024×768 |
| G104XGE-L05 | Innolux | 10.4 | 1024×768 |
| G104XVN01.0 | AUO | 10.4 | 1024×768 |
| LQ104V1DC41 | SHARP | 10.4 | 640×480 |
| LQ104X2LX05B | SHARP | 10.4 | 1024×768 |
| NL6448BC33-53 | NLT | 10.4 | 640×480 |
| TM104QDSG09 | Tianma | 10.4 | 640×480 |
