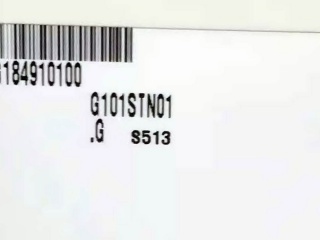

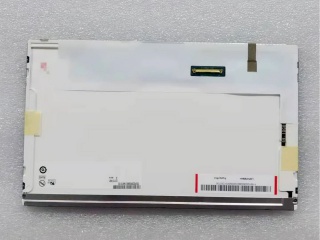

| Onderdeel nommer | G101STN01.G |
| Handelsmerk | AUO |
| Grootte | 10.1 |
| Toepassing | Industrial |
| Resolusie | 1024×600 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 500:1 |
| Kleure | 262K/16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| paneel handelsmerk | AUO |
| paneel grootte | 10.1" |
| resolusie | 1024(RGB)×600, WSVGA, 117PPI |
| vertoon area | 222.72(W)×125.28(H) mm |
| omtrek grootte | 235(W)×143(H) ×5.2(D) mm |
| helderheid | 250 cd/m² (Typ.) |
| kykhoek | 70/70/60/60 (Typ.)(CR≥10) |
| beste uitsig op | - |
| kleure vertoon | 262K/16.7M 45% NTSC |
| frekwensie | 60Hz |
| gewig | 180g (Typ.) |
| paneel model | G101STN01.G (AUO10D2) |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | 226.34(W)×128.1(H) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| kontras verhouding | 500:1 (Typ.) (TM) |
| vertoonmodus | TN, Normally White, Transmissive |
| reaksie tyd | 7/9 (Typ.)(Tr/Td) |
| tipe lamp | WLED , 15K hours , With LED Driver |
| raakskerm | Without |
| aansoek | Industrial |
| G101STN01.0 | AUO | 10.1 | 1024×600 |
| G101STN01.2 | AUO | 10.1 | 1024×600 |
| G101STN01.3 | AUO | 10.1 | 1024×600 |
| HSD100IFW1-A02 | HannStar | 10.1 | 1024×600 |
| LP101WH4-SLA6 | LG Display | 10.1 | 1366×768 |
| LP101WS1-TLB1 | LG Display | 10.1 | 1024×576 |
| LTN101NT02-W05 | Samsung | 10.1 | 1024×600 |
| N101ICG-L21 Rev.C2 | Innolux | 10.1 | 1280×800 |
| TV101WXM-NP0 | BOE | 10.1 | 1280×800 |
| VVX10T022N00 | Panasonic | 10.1 | 2560×1600 |
