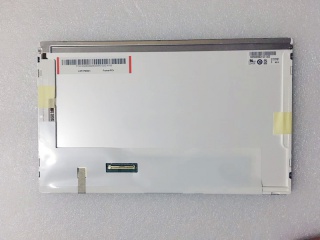

| Onderdeel nommer | G101STN01.6 |
| Handelsmerk | AUO |
| Grootte | 10.1 |
| Toepassing | Industrial |
| Resolusie | 1024×600 |
| Samestelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 500:1 |
| Kleure | 262K/16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| vervaardiger | AUO |
| model naam | G101STN01.6 |
| skerm grootte | 10.1 inch |
| tipe skerm | LCM, a-Si TFT-LCD |
| pixel nommer | 1024(RGB)×600 (WSVGA) 117PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 222.72 × 125.28 (H×V) |
| buitelyn (mm) | 235 × 143 × 5.2 (H×V×D) |
| ring area (mm) | 226.34 × 128.10 (H×V) |
| behandeling | Antiglare, Hard coating (3H) |
| helderheid | 250 cd/m² (Typ.) |
| kontras verhouding | 500 : 1 (Typ.) (TM) |
| kykhoek | 70/70/60/60 (Typ.)(CR≥10) |
| reaksie | 7/9 (Typ.)(Tr/Td) ms |
| goeie uitsig by | - |
| werksmodus | TN, Normally White, Transmissive |
| kleurdiepte | 262K/16.7M 45% NTSC |
| agterlig | WLED , 15K hours , With LED Driver |
| massa | 180g (Typ.) |
| gebruik vir | Industrial |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| Storage Temp.: -30 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
