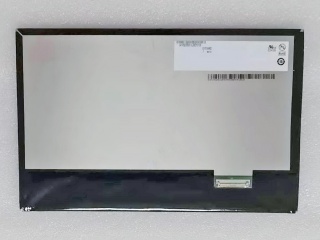

| Onderdeel nommer | G101EAN02.1 |
| Handelsmerk | AUO |
| Grootte | 10.1 |
| Toepassing | Industrial |
| Resolusie | 1280×800 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| handelsmerk | AUO |
| diagonale grootte | 10.1 inch |
| pixel formaat | 1280(RGB)×800 [WXGA] 149PPI |
| aktiewe area | 216.96(H)×135.6(V) mm |
| ring area | - |
| helderheid | 400 cd/m² (Typ.) |
| kyk rigting | Symmetry |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| ondersteun kleur | 16.7M 50% NTSC |
| gewig | 195g (Max.) |
| raamkoers | 60Hz |
| koppelvlak tipe | LVDS (1 ch, 8-bit) , 40 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C |
| model | G101EAN02.1 |
| tipe | a-Si TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 227.72(H)×147.8(V) ×4.8(D) mm |
| behandeling | Hard coating |
| kontras verhouding | 800:1 (Typ.) (TM) |
| reaksie tyd | 29 (Typ.)(Tr+Td) |
| bedryfsmodus | AHVA, Normally Black, Transmissive |
| Ligbron | WLED , 30K hours , With LED Driver |
| ontwerp vir | Industrial |
| raakpaneel | Without |
