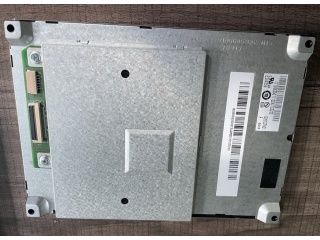

| Onderdeel nommer | G057QTN01.4 |
| Handelsmerk | AUO |
| Grootte | 5.7 |
| Toepassing | Industrial |
| Resolusie | 320×240 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 700:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | CMOS |
| paneel handelsmerk | AUO |
| paneel grootte | 5.7" |
| resolusie | 320(RGB)×240, QVGA, 70PPI |
| vertoon area | 115.2(W)×86.4(H) mm |
| helderheid | 500 cd/m² (Typ.) |
| kykhoek | 80/80/70/70 (Typ.)(CR≥10) |
| beste uitsig op | - |
| kleure vertoon | 262K |
| frekwensie | 60Hz |
| paneel gewig | - |
| sein koppelvlak | CMOS (1 ch, 6-bit) |
| omgewing | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
| paneel model | G057QTN01.4 |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| kontras verhouding | 700:1 (Typ.) (TM) |
| vertoonmodus | TN, Normally White, Transmissive |
| reaksie tyd | 15/10 (Typ.)(Tr/Td) |
| tipe lamp | WLED , 75K hours |
| raakskerm | Without |
| aansoek | Industrial |
| AA057VF12 | Mitsubishi | 5.7 | 640×480 |
| CLAA057VC01CW | CPT | 5.7 | 640×480 |
| EL320.240.36 ET CC | Lumineq | 5.7 | 320×240 |
| G057QN01 V0 | AUO | 5.7 | 320×240 |
| G057QN01 V1 | AUO | 5.7 | 320×240 |
| G057QN01 V2 | AUO | 5.7 | 320×240 |
| G057QTN01.1 | AUO | 5.7 | 320×240 |
| KCG057QV1DB-G56 | Kyocera | 5.7 | 320×240 |
| LQ057V3DG02 | SHARP | 5.7 | 640×480 |
| NL6448BC18-06F | NLT | 5.7 | 640×480 |
