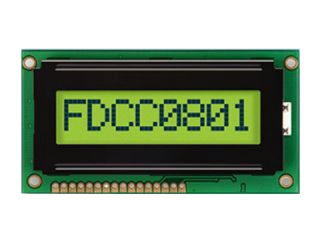

| Onderdeel nommer | FDCC0801A-FLYYBW-51LK |
| Handelsmerk | Fordata |
| Grootte | 2.3 |
| Toepassing | Instruments & Meters |
| Resolusie | 8×13 |
| Samestelling | STN-LCD , LCM |
| Helderheid | |
| CR | 6:1 |
| Kleure | Monochrome |
| Agterlig | YG-LED |
| Koppelvlak | 8-bit |
| paneel handelsmerk | Fordata |
| paneel grootte | 2.3" |
| vertoon formaat | 8 characters × 1 lines, 3PPI |
| karakter grootte | 6.45×10.75(W×H) mm |
| vertoon area | 56.5(W)×10.75(H) mm |
| omtrek grootte | 84(W)×44(H) ×13.5(D) mm |
| helderheid | - |
| kykhoek | - |
| beste uitsig op | 6 o'clock |
| kleure vertoon | Monochrome |
| frekwensie | - |
| paneel gewig | - |
| sein koppelvlak | 8-bit parallel , 16 pins Pad |
| insetspanning | 5.0V (Typ.) |
| omgewing | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| paneel model | FDCC0801A-FLYYBW-51LK |
| paneel tipe | STN-LCD , LCM |
| lettertipe formaat | 5×8 dots |
| karakter toonhoogte | 7.15×10.75(W×H) mm |
| ring opening | 61.0(W)×15.8(H) mm |
| oppervlak | - |
| kontras verhouding | 6:1 (Typ.) (TM) |
| vertoonmodus | STN, Yellow/Green (Positive), Transflective |
| reaksie tyd | 150/150 (Typ.)(Tr/Tf) |
| tipe lamp | YG-LED , 9K hours , Without Driver |
| raakskerm | Without |
| aansoek | Instruments & Meters |
