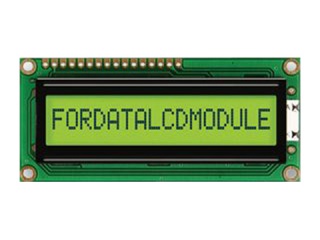

| Onderdeel nommer | FC1601E04-FHYYBW-91LE |
| Handelsmerk | Fordata |
| Grootte | 2.4 |
| Toepassing | Instruments & Meters |
| Resolusie | 5×8 |
| Samestelling | STN-LCD , LCM |
| Helderheid | |
| CR | 10:1 |
| Kleure | Monochrome |
| Agterlig | YG-LED |
| Koppelvlak | 8-bit |
| handelsmerk | Fordata |
| diagonale grootte | 2.4 inch |
| char-formaat | 5×8 dots |
| skrifgrootte | 3.07×6.56 mm |
| aktiewe area | 59.62(H)×6.56(V) mm |
| ring area | 64.5(H)×13.8(V) mm |
| helderheid | - |
| kyk rigting | 6 o'clock |
| kykhoek | - |
| ondersteun kleur | Monochrome |
| gewig | - |
| raamkoers | - |
| koppelvlak tipe | 8-bit parallel , 16 pins Pad |
| kragtoevoer | 3.0V (Typ.) |
| omgewing | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| model | FC1601E04-FHYYBW-91LE |
| tipe | STN-LCD , LCM |
| font toonhoogte | 3.77×6.56 mm |
| buitelyn dof. | 80(H)×36(V) ×13.5(D) mm |
| behandeling | - |
| kontras verhouding | 10:1 (Typ.) (TM) |
| reaksie tyd | 150/150 (Typ.)(Tr/Td) |
| bedryfsmodus | STN, Yellow/Green (Positive), Transflective |
| Ligbron | YG-LED , 20K hours , W/O Driver |
| ontwerp vir | Instruments & Meters |
| raakpaneel | Without |
