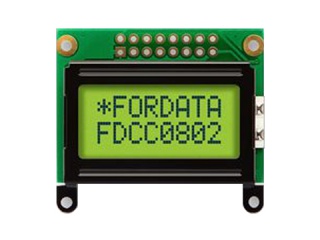

| Onderdeel nommer | FC0802C00-FHYYBW-51SK |
| Handelsmerk | Fordata |
| Grootte | 1.1 |
| Toepassing | Instruments & Me |
| Resolusie | 8×27 |
| Samestelling | STN-LCD, LCM |
| Helderheid | |
| CR | 10:1 |
| Kleure | Monochrome |
| Agterlig | YG-LED |
| Koppelvlak | 8-bit |
| paneel handelsmerk | Fordata |
| paneel model | FC0802C00-FHYYBW-51SK |
| paneel grootte | 1.1" |
| paneel tipe | STN-LCD, LCM |
| vertoon formaat | 8 characters × 2 lines, 7PPI |
| lettertipe formaat | 5×8 dots |
| karakter grootte | 2.95×4.75(W×H) mm |
| karakter toonhoogte | 3.35×5.15(W×H) mm |
| vertoon area | 26.4(W)×9.9(H) mm |
| ring opening | 30.4(W)×13.9(H) mm |
| omtrek grootte | 40(W)×35.4(H) ×13(D) mm |
| oppervlak | - |
| helderheid | - |
| kontras verhouding | 10:1 (Typ.) (TM) |
| kykhoek | - |
| vertoonmodus | STN, Yellow/Green (Positive), Transflective |
| beste uitsig op | 6 o'clock |
| reaksie tyd | 150/150 (Typ.)(Tr/Td) |
| kleure vertoon | Monochrome |
| tipe lamp | YG-LED , 20K hours , Without Driver |
| frekwensie | - |
| raakskerm | Without |
| paneel gewig | - |
| aansoek | Instruments & Meters |
| sein koppelvlak | 8-bit parallel , 16 pins Pad |
| insetspanning | 5.0V (Typ.) |
| omgewing | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
