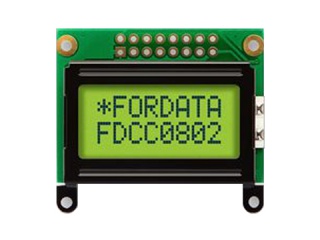

| Onderdeel nommer | FC0802C00-FHYYBW-51LR |
| Handelsmerk | Fordata |
| Grootte | 1.1 |
| Toepassing | Instruments & Me |
| Resolusie | 5×8 |
| Samestelling | STN-LCD, LCM |
| Helderheid | |
| CR | 10:1 |
| Kleure | Monochrome |
| Agterlig | YG-LED |
| Koppelvlak | 8-bit |
| handelsmerk | Fordata |
| model | FC0802C00-FHYYBW-51LR |
| diagonale grootte | 1.1 inch |
| tipe | STN-LCD, LCM |
| char-formaat | 5×8 dots |
| skrifgrootte | 2.95×4.75 mm |
| font toonhoogte | 3.35×5.15 mm |
| aktiewe area | 26.4(H)×9.9(V) mm |
| buitelyn dof. | 40(H)×35.4(V) ×13(D) mm |
| ring area | 30.4(H)×13.9(V) mm |
| behandeling | - |
| helderheid | - |
| kontras verhouding | 10:1 (Typ.) (TM) |
| kyk rigting | 6 o'clock |
| reaksie tyd | 150/150 (Typ.)(Tr/Td) |
| kykhoek | - |
| bedryfsmodus | STN, Yellow/Green (Positive), Transflective |
| ondersteun kleur | Monochrome |
| Ligbron | YG-LED , 20K hours , W/O Driver |
| gewig | - |
| ontwerp vir | Instruments & Meters |
| raamkoers | - |
| raakpaneel | Without |
| koppelvlak tipe | 8-bit parallel , 16 pins Pad |
| kragtoevoer | 5.0V (Typ.) |
| omgewing | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
