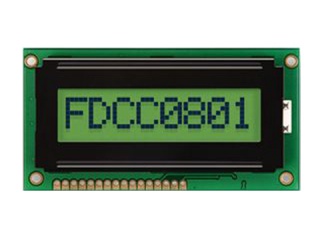

| Onderdeel nommer | FC0801A04-RNNYBW-16LE |
| Handelsmerk | Fordata |
| Grootte | 2.3 |
| Toepassing | Instruments & Me |
| Resolusie | 5×8 |
| Samestelling | STN-LCD, LCM |
| Helderheid | |
| CR | 10:1 |
| Kleure | Monochrome |
| Agterlig | No |
| Koppelvlak | |
| handelsmerk | Fordata |
| model | FC0801A04-RNNYBW-16LE |
| diagonale grootte | 2.3 inch |
| tipe | STN-LCD, LCM |
| char-formaat | 5×8 dots |
| skrifgrootte | 6.45×10.75 mm |
| font toonhoogte | 7.15×10.75 mm |
| aktiewe area | 56.5(H)×10.75(V) mm |
| buitelyn dof. | 84(H)×44(V) ×10(D) mm |
| ring area | 61.0(H)×15.8(V) mm |
| behandeling | - |
| helderheid | - |
| kontras verhouding | 10:1 (Typ.) (TM) |
| kyk rigting | 6 o'clock |
| reaksie tyd | 150/150 (Typ.)(Tr/Tf) |
| kykhoek | - |
| bedryfsmodus | STN, Yellow/Green (Positive), Reflective |
| ondersteun kleur | Monochrome |
| Ligbron | No B/L |
| gewig | - |
| ontwerp vir | Instruments & Meters |
| raamkoers | - |
| raakpaneel | Without |
| Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
