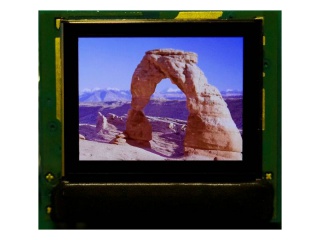

| Onderdeel nommer | EMA-101125 |
| Handelsmerk | eMagin |
| Grootte | 0.59 |
| Toepassing | HMD VR AR |
| Resolusie | 800×600 |
| Samestelling | OLED , Si-OLED |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | self |
| Koppelvlak | Parallel |
| vervaardiger | eMagin |
| skerm grootte | 0.59 inch |
| pixel nommer | 800(RGB)×600 (SVGA) 1693PPI |
| aktiewe area (mm) | 12 × 9 (H×V) |
| helderheid | 150 cd/m² (Typ.) |
| kykhoek | - |
| goeie uitsig by | Symmetry |
| kleurdiepte | 16.7M 52% NTSC |
| massa | 2.00g (Typ.) |
| herlaaitempo | 60Hz |
| sein tipe | Parallel RGB (1 ch, 8-bit) , 40 pins Connector |
| spanningstoevoer | 1.8/5.0V (Typ.)(VDD1.8/VDD5) |
| maks. graderings | Storage Temp.: -55 ~ 90 °C Operating Temp.: -45 ~ 70 °C |
| model naam | EMA-101125 |
| tipe skerm | OLED , Si-OLED |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 18 × 16 × 5.4 (H×V×D) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| reaksie | - |
| werksmodus | - |
| agterlig | self |
| gebruik vir | HMD VR AR |
| raakskerm | Without |
