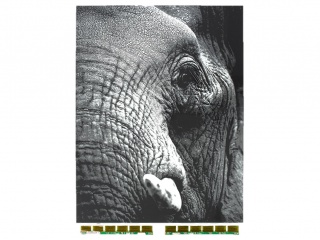

| Onderdeel nommer | ED420TT1 |
| Handelsmerk | E Ink |
| Grootte | 42 |
| Toepassing | Digital Signage |
| Resolusie | 2160×2880 |
| Samestelling | EPD, EPD |
| Helderheid | |
| CR | 12:1 |
| Kleure | Grayscale |
| Agterlig | No |
| Koppelvlak | Parallel |
| paneel handelsmerk | E Ink |
| paneel model | ED420TT1 1 Compatible |
| paneel grootte | 42" |
| paneel tipe | EPD, EPD |
| resolusie | 2160×2880, 85PPI |
| pixel formaat | Rectangle |
| vertoon area | 642.6(W)×856.8(H) mm |
| ring opening | - |
| omtrek grootte | 650(W)×872.5(H) mm |
| oppervlak | Hard coating |
| helderheid | - |
| kontras verhouding | 12:1 (Typ.) (RF) |
| kykhoek | - |
| vertoonmodus | Reflective |
| beste uitsig op | - |
| reaksie tyd | - |
| kleure vertoon | Grayscale |
| tipe lamp | No B/L |
| frekwensie | 50Hz |
| raakskerm | Without |
| paneel gewig | 1.10Kgs (Typ.) |
| aansoek | Digital Signage |
| sein koppelvlak | Parallel Data (2ch, 8-bit) , 100 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 70 °C |
