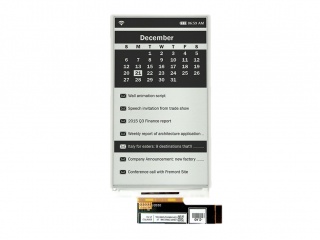

| Onderdeel nommer | ED047TC2 |
| Handelsmerk | E Ink |
| Grootte | 4.7 |
| Toepassing | Mobile Phone |
| Resolusie | 540×960 |
| Samestelling | EPD, EPD |
| Helderheid | |
| CR | |
| Kleure | Grayscale |
| Agterlig | No |
| Koppelvlak | Parallel |
| handelsmerk | E Ink |
| model | ED047TC2 |
| diagonale grootte | 4.7 inch |
| tipe | EPD, EPD |
| pixel formaat | 540×960 [qHD] 235PPI |
| konfigurasie | Rectangle |
| aktiewe area | 58.32(H)×103.68(V) mm |
| buitelyn dof. | 62.5(H)×113.9(V) mm |
| ring area | - |
| behandeling | Hard coating |
| kyk rigting | - |
| reaksie tyd | 450 |
| kykhoek | - |
| bedryfsmodus | Reflective |
| ondersteun kleur | Grayscale |
| Ligbron | No B/L |
| gewig | 12.0g |
| ontwerp vir | Mobile Phone |
| raamkoers | - |
| raakpaneel | Without |
| koppelvlak tipe | Parallel Data (1ch, 8-bit) Connector |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 70 °C |
