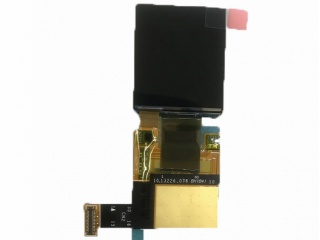

| Onderdeel nommer | E1414AK68.A |
| Handelsmerk | EDO |
| Grootte | 1.4 |
| Toepassing | Wearable |
| Resolusie | 320×360 |
| Samestelling | OLED, AM-OLED |
| Helderheid | |
| CR | 10000:1 |
| Kleure | 16.7M |
| Agterlig | self |
| Koppelvlak | MIPI |
| vervaardiger | EDO |
| model naam | E1414AK68.A |
| skerm grootte | 1.4 inch |
| tipe skerm | OLED, AM-OLED |
| pixel nommer | 320(RGB)×360 340PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 23.84 × 26.82 (H×V) |
| buitelyn (mm) | 26.04 × 31.78 × 0.85 (H×V×D) |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 10000 : 1 (Min.) (TM) |
| kykhoek | 80/80/80/80 (Min.)(CR≥1000) |
| reaksie | 2 (Typ.)(Tr+Tf) ms |
| goeie uitsig by | Symmetry |
| werksmodus | - |
| kleurdiepte | 16.7M 105% NTSC |
| agterlig | self |
| massa | - |
| gebruik vir | Wearable |
| herlaaitempo | 60Hz |
| raakskerm | PCAP |
| bestuurder ic lys | Built-in COF RM67162 |
| sein tipe | MIPI (1 data lane) , Connector 30 pins |
| spanningstoevoer | 1.8/2.8/4.6/2.4V (Typ.)(VDDIO/VCI/ELVDD/ELVSS) |
| maks. graderings | Storage Temp.: -40 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
