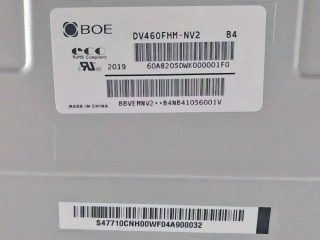

| Onderdeel nommer | DV460FHM-NV2 |
| Handelsmerk | BOE |
| Grootte | 46 |
| Toepassing | Video Wall |
| Resolusie | 1920×1080 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 1200:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| vervaardiger | BOE |
| skerm grootte | 46 inch |
| pixel nommer | 1920(RGB)×1080 (FHD) 47PPI |
| aktiewe area (mm) | 1018.08 × 572.67 (H×V) |
| ring area (mm) | - |
| helderheid | 500 cd/m² (Typ.) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| goeie uitsig by | Symmetry |
| kleurdiepte | 16.7M 95% sRGB |
| splitsing naat | 0.9 mm (active to active seam) |
| herlaaitempo | 60Hz |
| sein tipe | LVDS (2 ch, 8-bit) , 51 pins Connector |
| spanningstoevoer | 12.0V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| model naam | DV460FHM-NV2 |
| tipe skerm | LCM , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 1018.96 × 573.55 × 58.3 (H×V×D) |
| behandeling | Antiglare (Haze 25%), Hard coating (2H) |
| kontras verhouding | 1200 : 1 (Typ.) (TM) |
| reaksie | 8 (Typ.)(G to G) ms |
| werksmodus | ADS, Normally Black, Transmissive |
| agterlig | WLED , 50K hours , With LED Driver |
| gebruik vir | Video Wall |
| raakskerm | Without |
