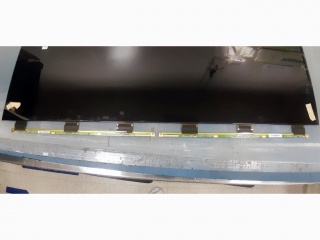

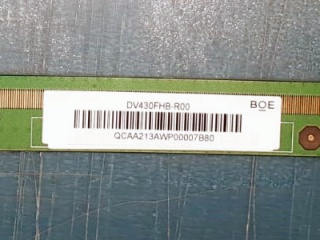

| Onderdeel nommer | DV430FHB-R00 |
| Handelsmerk | BOE |
| Grootte | 43 |
| Toepassing | Digital Signage |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD, CELL |
| Helderheid | |
| CR | 1200:1 |
| Kleure | 16.7M |
| Agterlig | No |
| Koppelvlak | LVDS |
| paneel handelsmerk | BOE |
| paneel model | DV430FHB-R00 |
| paneel grootte | 43" |
| paneel tipe | a-Si TFT-LCD, CELL |
| resolusie | 1920(RGB)×1080, FHD, 51PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 940.896(W)×529.254(H) mm |
| ring opening | - |
| omtrek grootte | 949.5(W)×541.75(H) ×1.4(D) mm |
| oppervlak | Antiglare (Haze 1%), Hard coating (3H) |
| helderheid | 0 cd/m² |
| kontras verhouding | 1200:1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| vertoonmodus | ADS, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 8 (Typ.)(G to G) |
| glas diepte | 0.50+0.50 mm |
| deurlaatbaarheid | 6.0% (Typ.) |
| kleure vertoon | 16.7M |
| tipe lamp | No B/L |
| frekwensie | 60Hz |
| raakskerm | Without |
| bestuurder ic | COFBuilt-in 6 source chips |
| paneel gewig | 1.51Kgs (Typ.) |
| aansoek | Digital Signage |
| sein koppelvlak | LVDS (2 ch, 8-bit) , 51 pins Connector |
| insetspanning | 12.0V (Typ.) |
| omgewing | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 70 °C |
