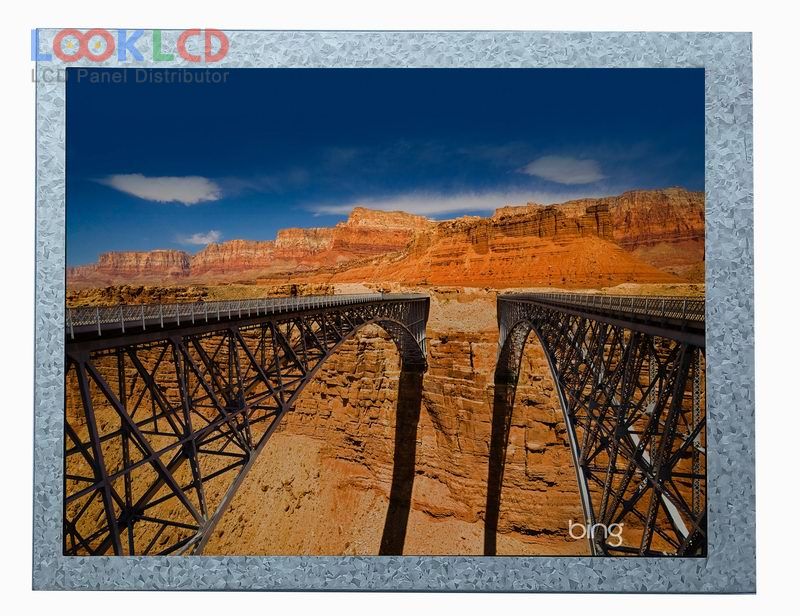

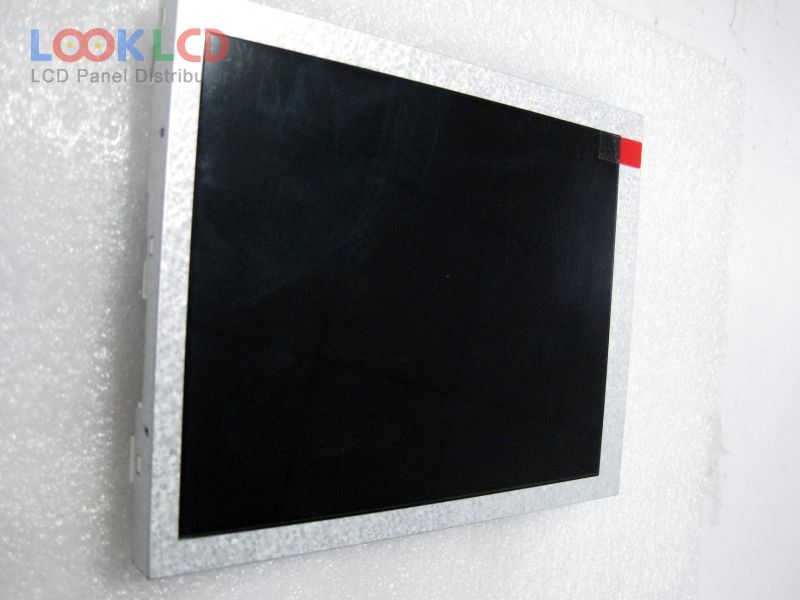

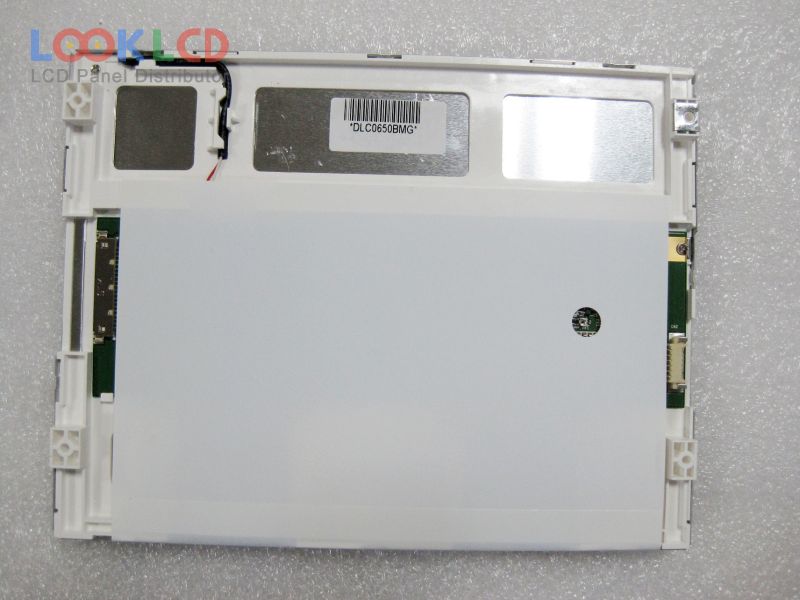

| Onderdeel nommer | DLC0650BMG |
| Handelsmerk | Other |
| Grootte | 6.5 |
| Toepassing | IA |
| Resolusie | 640×480 |
| Samestelling | LCM |
| Helderheid | 800 |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | DLC |
| paneel model | DLC0650BMG 1 Compatible model |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 6.5 inch |
| resolusie | 640(RGB)×480 , VGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 132.48×99.36 mm |
| buitelyn | 153×118×12.2 mm |
| oppervlak | Antireflection |
| helderheid | 800 cd/m² (Typ.) |
| kontras verhouding | 500:1 (Typ.) |
| kleure vertoon | 262K (6-bit), CIE193150% |
| reaksie tyd | 20 (Typ.)(Tr+Td) |
| kykhoek | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 6S2PWLEDEmbedded (LED Driver) |
| sein koppelvlak | LVDS (1 ch, 6-bit), 20 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | IA |
