| Onderdeel nommer | COM50H5N17ULC |
| Handelsmerk | Ortustech |
| Grootte | 5.0 |
| Toepassing | Handheld & PDA |
| Resolusie | 720×1280 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 800:13:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | MIPI |
| handelsmerk | Ortustech |
| model | COM50H5N17ULC |
| diagonale grootte | 5.0 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 720(RGB)×1280 [WXGA] 296PPI |
| konfigurasie | RGB Vertical Stripe |

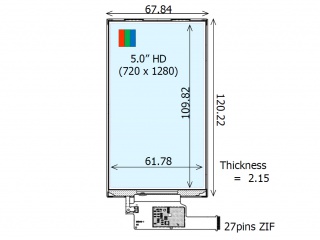

| aktiewe area | 61.776(H)×109.824(V) mm |
| buitelyn dof. | 67.84(H)×120.22(V) ×2.4(D) mm |
| ring area | - |
| behandeling | Hard coating (2H) |
| helderheid | 400 cd/m² (Typ.) |
| kontras verhouding | 800:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| kyk rigting | Symmetry |
| reaksie tyd | 100 (Max.)(Tr+Td) |
| kykhoek | 80/80/80/80 (Min.)(CR≥10) |
| bedryfsmodus | VA, Normally Black, Transflective |
| ondersteun kleur | 16.7M 50% NTSC |
| Ligbron | WLED [8S1P] , 50K hours , W/O Driver |
| gewig | 34.0g (Typ.) |
| ontwerp vir | Handheld & PDA |
| raamkoers | 60Hz |
| raakpaneel | Without |
| koppelvlak tipe | MIPI (4 data lanes) , 27 pins FPC |
| kragtoevoer | 1.8/2.9V (Typ.)(IOVCC/VCC) |
| omgewing | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
