| Onderdeel nommer | COM50H5N03ULC |
| Handelsmerk | Ortustech |
| Grootte | 5.0 |
| Toepassing | Handheld & PDA |
| Resolusie | 720×1280 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 800:13:1 |
| Kleure | 16.7M |
| Agterlig | 8S1P |
| Koppelvlak | MIPI |
| vervaardiger | Ortustech |
| model naam | COM50H5N03ULC 1 Compatible |
| skerm grootte | 5.0 inch |
| tipe skerm | LCM , a-Si TFT-LCD |
| pixel nommer | 720(RGB)×1280 (WXGA) 296PPI |
| reëling | RGB Vertical Stripe |

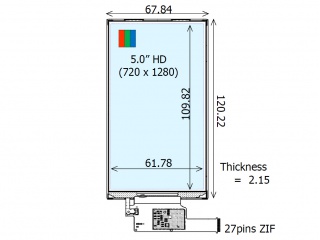

| aktiewe area (mm) | 61.776 × 109.824 (H×V) |
| buitelyn (mm) | 67.84 × 120.22 × 2.4 (H×V×D) |
| ring area (mm) | - |
| behandeling | Hard coating (2H) |
| helderheid | 400 cd/m² (Typ.) |
| kontras verhouding | 800 : 1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| kykhoek | 80/80/80/80 (Min.)(CR≥10) |
| reaksie | TBD ms |
| goeie uitsig by | Symmetry |
| werksmodus | VA, Normally Black, Transflective |
| kleurdiepte | 16.7M 50% NTSC |
| agterlig | 8S1P WLED , 50K hours , No Driver |
| massa | 34.0g (Typ.) |
| gebruik vir | Handheld & PDA |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | MIPI (4 data lanes) , 27 pins FPC |
| spanningstoevoer | 1.9/2.9V (Typ.)(VCCIO/VDD) |
| maks. graderings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
