| Onderdeel nommer | COM48H4N77ULC |
| Handelsmerk | Ortustech |
| Grootte | 4.8 |
| Toepassing | Handheld & PDA |
| Resolusie | 720×1280 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 700:13:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | MIPI |
| handelsmerk | Ortustech |
| diagonale grootte | 4.8 inch |
| pixel formaat | 720(RGB)×1280 [WXGA] 309PPI |
| aktiewe area | 59.184(H)×105.216(V) mm |
| ring area | - |
| helderheid | 300 cd/m² (Typ.) |
| kyk rigting | Symmetry |
| kykhoek | 80/80/80/80 (Min.)(CR≥10) |
| ondersteun kleur | 16.7M 50% NTSC |
| gewig | 25.2g (Typ.) |
| raamkoers | - |
| koppelvlak tipe | MIPI (4 data lanes) , 26 pins Connector |
| kragtoevoer | 1.9/2.9V (Typ.)(IOVCC/VCC) |
| omgewing | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²) |
| model | COM48H4N77ULC |
| tipe | a-Si TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |

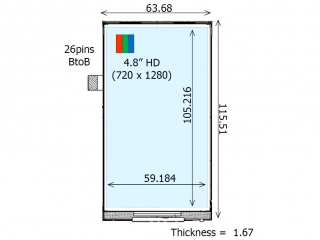

| buitelyn dof. | 63.68(H)×115.51(V) ×1.87(D) mm |
| behandeling | Hard coating (2H) |
| kontras verhouding | 700:1 (Typ.) (TM) 3:1 (Typ.) (RF) |
| reaksie tyd | 40/60 (Max.)(Tr/Td) |
| bedryfsmodus | VA, Normally Black, Transflective |
| Ligbron | WLED [9S1P] , 20K hours , W/O Driver |
| ontwerp vir | Handheld & PDA |
| raakpaneel | Without |
