| Onderdeel nommer | COM35H3P58ULC |
| Handelsmerk | Ortustech |
| Grootte | 3.5 |
| Toepassing | Handheld & PDA |
| Resolusie | 320×240 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 700:12:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | Parallel |
| handelsmerk | Ortustech |
| model | COM35H3P58ULC |
| diagonale grootte | 3.5 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 320(RGB)×240 [QVGA] 115PPI |
| konfigurasie | RGB Vertical Stripe |

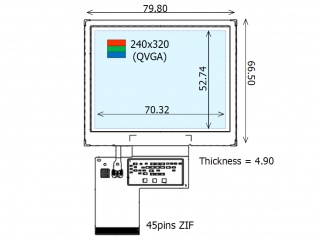

| aktiewe area | 70.32(H)×52.74(V) mm |
| buitelyn dof. | 79.8(H)×66.5(V) ×5.1(D) mm |
| ring area | - |
| behandeling | Hard coating (2H) |
| helderheid | 600 cd/m² (Typ.) |
| kontras verhouding | 700:1 (Typ.) (TM) 2:1 (Typ.) (RF) |
| kyk rigting | Symmetry |
| reaksie tyd | 60/40 (Max.)(Tr/Td) |
| kykhoek | 80/80/80/80 (Min.)(CR≥10) |
| bedryfsmodus | VA, Normally Black, Transflective |
| ondersteun kleur | 16.7M 50% NTSC |
| Ligbron | WLED [3S2P] , 50K hours , W/O Driver |
| gewig | TBD |
| ontwerp vir | Handheld & PDA |
| raamkoers | 60Hz |
| raakpaneel | Without |
| koppelvlak tipe | Parallel RGB (1 ch, 8-bit) , 45 pins FPC |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C |
