| Onderdeel nommer | COM24H2P71ULC |
| Handelsmerk | Ortustech |
| Grootte | 2.4 |
| Toepassing | Handheld & PDA |
| Resolusie | 240×320 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 800:12:1 |
| Kleure | 262K |
| Agterlig | 2S1P |
| Koppelvlak | Parallel |
| paneel handelsmerk | Ortustech |
| paneel model | COM24H2P71ULC |
| paneel grootte | 2.4" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 240(RGB)×320, QVGA, 169PPI |
| pixel formaat | RGB Vertical Stripe |

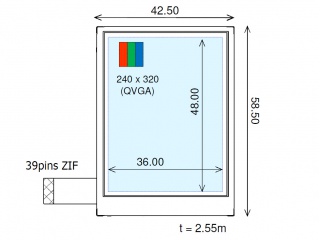

| vertoon area | 36(W)×48(H) mm |
| ring opening | - |
| omtrek grootte | 42.5(W)×58.5(H) ×5.55(D) mm |
| oppervlak | Hard coating (3H) |
| helderheid | 270 cd/m² (Typ.) |
| kontras verhouding | 800:1 (Typ.) (TM) 2:1 (Typ.) (RF) |
| kykhoek | 80/80/80/80 (Min.)(CR≥10) |
| vertoonmodus | VA, Normally Black, Transflective |
| beste uitsig op | Symmetry |
| reaksie tyd | 50 (Typ.)(Tr+Td) |
| kleure vertoon | 262K 50% NTSC |
| tipe lamp | 2S1P WLED , 50K hours , Without Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| paneel gewig | 13.5g (Typ.) |
| aansoek | Handheld & PDA |
| sein koppelvlak | Parallel RGB (1 ch, 6-bit) , 39 pins FPC |
| insetspanning | 3.3/3.3V (Typ.)(VCCIO/VDD) |
| omgewing | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C |
| 24QVF1H | SII | 2.4 | 240×320 |
| A024CN02 VL | AUO | 2.4 | 480×234 |
| C0240QGLG-T | CMEL | 2.4 | 240×320 |
| COM24H2N62XLC | ORTUSTECH | 2.4 | 240×320 |
| LS024J3LX01 | SHARP | 2.4 | 320×480 |
| LS024Q3UX12(G) | SHARP | 2.4 | 320×240 |
| PD024OX4 | E Ink | 2.4 | 480×234 |
| RGS24128064YW004 | RiTdisplay | 2.4 | 128×64 |
| TD024THEB2 | TPO | 2.4 | 480×240 |
| TM024HDH36 | Tianma | 2.4 | 240×320 |
