| Onderdeel nommer | COM104T9M15ERS |
| Handelsmerk | Ortustech |
| Grootte | 10.4 |
| Toepassing | Industrial |
| Resolusie | 800×600 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 262K/16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| paneel handelsmerk | Ortustech |
| paneel grootte | 10.4" |
| resolusie | 800(RGB)×600, SVGA, 96PPI |

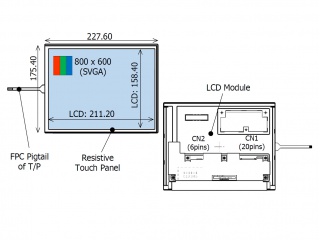

| vertoon area | 211.2(W)×158.4(H) mm |
| omtrek grootte | 227.6(W)×175.4(H) mm |
| helderheid | 560 cd/m² (Min.) |
| kykhoek | 85/85/85/85 (Min.)(CR≥10) |
| beste uitsig op | Symmetry |
| kleure vertoon | 262K/16.7M 50% NTSC |
| frekwensie | 60Hz |
| gewig | - |
| paneel model | COM104T9M15ERS |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| oppervlak | - |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| vertoonmodus | FFS, Normally Black, Transmissive |
| reaksie tyd | 40 (Max.)(Tr+Td) |
| tipe lamp | WLED , 70K hours , With LED Driver |
| raakskerm | 4-wire Resistive Touch |
| aansoek | Industrial |
