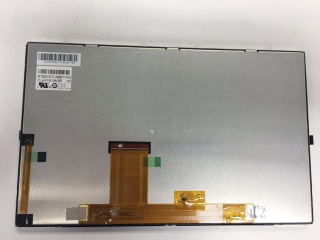

| Onderdeel nommer | CLAA101WK06 XN |
| Handelsmerk | CPT |
| Grootte | 10.1 |
| Toepassing | Automotive Display |
| Resolusie | 1280×720 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 900:1 |
| Kleure | 262K/16.7M |
| Agterlig | 6S5P |
| Koppelvlak | LVDS |
| paneel handelsmerk | CPT |
| paneel model | CLAA101WK06 XN |
| paneel grootte | 10.1" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1280(RGB)×720, WXGA, 144PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 224.64(W)×126.36(H) mm |
| ring opening | 227.64(W)×129.36(H) mm |
| omtrek grootte | 238.8(W)×148.05(H) ×8.7(D) mm |
| oppervlak | Antiglare (Haze 25%), Hard coating (3H) |
| helderheid | 600 cd/m² (Typ.) |
| kontras verhouding | 900:1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| vertoonmodus | HFFS, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| kleure vertoon | 262K/16.7M 70% NTSC |
| tipe lamp | 6S5P WLED , 30K hours , Without Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| paneel gewig | 430g (Typ.) |
| aansoek | Automotive Display |
| sein koppelvlak | LVDS (1 ch, 6/8-bit) , 60 pins FPC |
| insetspanning | 3.3/12.4/24.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| omgewing | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
