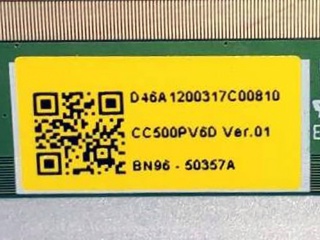

| Onderdeel nommer | CC500PV6D |
| Handelsmerk | PANDA |
| Grootte | 50 |
| Toepassing | TV Sets |
| Resolusie | 3840×2160 |
| Samestelling | Oxide TFT-LCD, CELL |
| Helderheid | |
| CR | 6000:1 |
| Kleure | 1.07B |
| Agterlig | No |
| Koppelvlak | USI-T |
| paneel handelsmerk | PANDA |
| paneel model | CC500PV6D |
| paneel grootte | 50" |
| paneel tipe | Oxide TFT-LCD, CELL |
| resolusie | 3840(RGB)×2160, UHD, 89PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 1095.8(W)×616.41(H) mm |
| ring opening | - |
| omtrek grootte | 1105.84(W)×627.91(H) ×1.37(D) mm |
| oppervlak | Antiglare (Haze 2.3%), Hard coating (3H) |
| helderheid | 0 cd/m² |
| kontras verhouding | 6000:1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| vertoonmodus | UV2A, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 8 (Typ.)(G to G) |
| glas diepte | 0.50+0.50 mm |
| deurlaatbaarheid | 5.0% (Typ.)(with Polarizer) |
| kleure vertoon | 1.07B 70% NTSC |
| tipe lamp | No B/L |
| frekwensie | 60Hz |
| raakskerm | Without |
| bestuurder ic | COF Built-in 12 source chips |
| paneel gewig | 2.15Kgs (Typ.) |
| aansoek | TV Sets |
| sein koppelvlak | USI-T , 96 pins Connector |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 65 °C |
| LC500DUE-VGM1 | LG Display | 50 | 1920×1080 |
| LC500EUE-FFF1 | LG Display | 50 | 1920×1080 |
| T500HVN04.6 | AUO | 50 | 1920×1080 |
| T500HVN05.0 CELL | AUO | 50 | 1920×1080 |
| V500DJ2-QS5 | Innolux | 50 | 3840×2160 |
| V500DK2-KS1 Rev.C8 | Innolux | 50 | 3840×2160 |
| V500HJ1-LE2 | Innolux | 50 | 1920×1080 |
| V500HJ1-PE6 | Innolux | 50 | 1920×1080 |
| V500HK1-LS6 Rev.C7 | Innolux | 50 | 1920×1080 |
| V500HK1-PS6 | Innolux | 50 | 1920×1080 |
