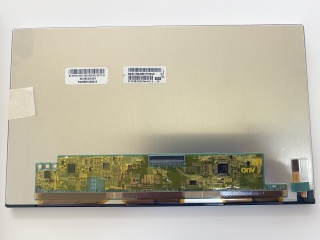

| Onderdeel nommer | C090EAN01.0 |
| Handelsmerk | AUO |
| Grootte | 9.0 |
| Toepassing | Automotive Display |
| Resolusie | 1280×720 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| handelsmerk | AUO |
| model | C090EAN01.0 |
| diagonale grootte | 9.0 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 1280(RGB)×720 [WXGA] 163PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 198.72(H)×111.78(V) mm |
| buitelyn dof. | - |
| helderheid | - |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 15/15 (Max.)(Tr/Td) |
| kykhoek | 80/80/80/80 (Typ.)(CR≥10) |
| bedryfsmodus | AHVA, Normally Black, Transmissive |
| ondersteun kleur | 16.7M 70% NTSC |
| Ligbron | WLED |
| gewig | - |
| ontwerp vir | Automotive Display |
| raamkoers | 60Hz |
| raakpaneel | Without |
| koppelvlak tipe | LVDS (1 ch, 8-bit) |
| omgewing | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
