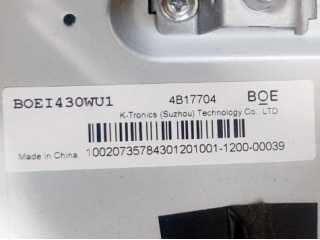

| Onderdeel nommer | BOEI430WU1 |
| Handelsmerk | BOE |
| Grootte | 43 |
| Toepassing | Digital Signage |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1200:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | BOE |
| paneel model | BOEI430WU1 |
| paneel grootte | 43" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1920(RGB)×1080, FHD, 51PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 940.896(W)×529.254(H) mm |
| ring opening | - |
| omtrek grootte | 967.9(W)×561.9(H) mm |
| oppervlak | Antiglare (Haze 1%), Hard coating (3H) |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 1200:1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| vertoonmodus | ADS, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 8 (Typ.)(G to G) |
| kleure vertoon | 16.7M 72% NTSC |
| tipe lamp | WLED , 30K hours , Without Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| paneel gewig | TBD |
| aansoek | Digital Signage |
| sein koppelvlak | LVDS (2 ch, 8-bit) , 51 pins Connector |
| insetspanning | 12.0V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
