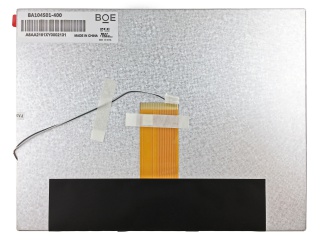

| Onderdeel nommer | BA104S01-400 |
| Handelsmerk | BOE |
| Grootte | 10.4 |
| Toepassing | Digital Photo Frame |
| Resolusie | 800×600 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 800:1 |
| Kleure | 262K/16.7M |
| Agterlig | 3S12P |
| Koppelvlak | Parallel |
| paneel handelsmerk | BOE |
| paneel grootte | 10.4" |
| resolusie | 800(RGB)×600, SVGA, 96PPI |
| vertoon area | 211.2(W)×158.4(H) mm |
| omtrek grootte | 228.4(W)×175.4(H) mm |
| helderheid | 350 cd/m² (Typ.) |
| kykhoek | 80/80/65/75 (Typ.)(CR≥10) |
| beste uitsig op | - |
| kleure vertoon | 262K/16.7M 55% NTSC |
| frekwensie | 60Hz |
| paneel gewig | TBD |
| sein koppelvlak | Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
| insetspanning | 3.3/9/18/-8V (Typ.)(VCC/AVDD/VGH/VGL) |
| omgewing | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| paneel model | BA104S01-400 |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | 214.4(W)×161.6(H) mm |
| oppervlak | Antiglare |
| kontras verhouding | 800:1 (Typ.) (TM) |
| vertoonmodus | TN, Normally White, Transmissive |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| tipe lamp | 3S12P WLED , 20K hours , Without Driver |
| raakskerm | Without |
| aansoek | Digital Photo Frame Home Appliance |
