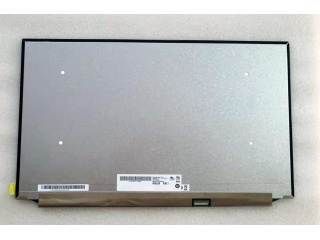

| Onderdeel nommer | B173ZAN03.5 |
| Handelsmerk | AUO |
| Grootte | 17.3 |
| Toepassing | Laptop Gaming |
| Resolusie | 3840×2160 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 1.07B |
| Agterlig | WLED |
| Koppelvlak | eDP |
| handelsmerk | AUO |
| diagonale grootte | 17.3 inch |
| pixel formaat | 3840(RGB)×2160 [UHD] 255PPI |
| aktiewe area | 381.89(H)×214.81(V) mm |
| helderheid | 500 cd/m² (Typ.) |
| kyk rigting | Symmetry |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| ondersteun kleur | 1.07B 100% NTSC |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| raamkoers | 120Hz |
| koppelvlak tipe | eDP (4 Lanes) , eDP1.4a , 40 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

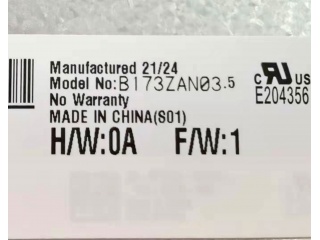

| model | B173ZAN03.5 (AUO2892) |
| tipe | a-Si TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 389.89(H)×238.31(V) ×3.5(D) mm |
| kontras verhouding | 1000:1 (Min.) (TM) |
| reaksie tyd | 10 (Typ.)(Tr+Td); 8.3 (Typ.)(G to G) |
| bedryfsmodus | AHVA, Normally Black, Transmissive |
| Ligbron | WLED , 15K hours , With LED Driver |
| ontwerp vir | Laptop Gaming |
| raakpaneel | Without |
