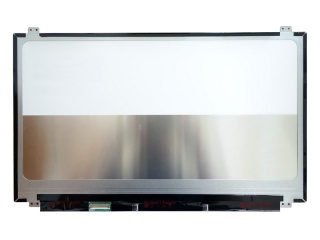

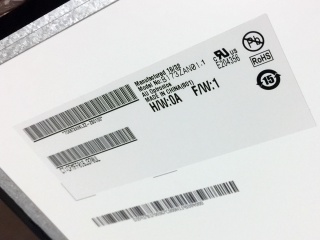

| Onderdeel nommer | B173ZAN01.1 |
| Handelsmerk | AUO |
| Grootte | 17.3 |
| Toepassing | Laptop |
| Resolusie | 3840×2160 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| vervaardiger | AUO |
| skerm grootte | 17.3 inch |
| pixel nommer | 3840(RGB)×2160 (UHD) 255PPI |
| aktiewe area (mm) | 382.12 × 214.94 (H×V) |
| ring area (mm) | - |
| helderheid | 300 cd/m² (Typ.) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| goeie uitsig by | Symmetry |
| kleurdiepte | 16.7M 100% Adobe RGB |
| omtrek vorm | Flat (PCBA Flat, T3.4~4.0mm) |
| herlaaitempo | 60Hz |
| sein tipe | eDP (4 Lanes) , eDP1.3 , 40 pins Connector |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| model naam | B173ZAN01.1 (AUO119B) |
| tipe skerm | LCM , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 398.1 × 252.5 × 4 (H×V×D) |
| behandeling | Antiglare, Hard coating (3H) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| reaksie | 27 (Typ.)(Tr+Td) ms |
| werksmodus | AHVA, Normally Black, Transmissive |
| agterlig | WLED , 15K hours , With LED Driver |
| gebruik vir | Laptop |
| raakskerm | Without |
