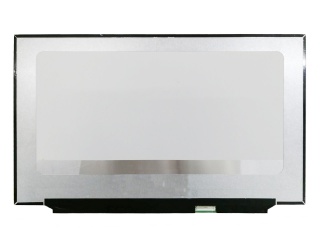

| Onderdeel nommer | B173HAN04.4 |
| Handelsmerk | AUO |
| Grootte | 17.3 |
| Toepassing | Laptop Gaming |
| Resolusie | 1920×1080 |
| Samestelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 800:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| vervaardiger | AUO |
| model naam | B173HAN04.4 (AUO449D) |
| skerm grootte | 17.3 inch |
| tipe skerm | LCM, a-Si TFT-LCD |
| pixel nommer | 1920(RGB)×1080 (FHD) 127PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 381.888 × 214.812 (H×V) |
| buitelyn (mm) | 389.89 × 238.31 × 3.5 (H×V×D) |
| ring area (mm) | - |
| behandeling | Antiglare, Hard coating (3H) |
| helderheid | 300 cd/m² (Typ.) |
| kontras verhouding | 800 : 1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| reaksie | 9 (Typ.)(Tr+Td); 7 (Typ.)(G to G) ms |
| goeie uitsig by | Symmetry |
| werksmodus | AHVA, Normally Black, Transmissive |
| kleurdiepte | 16.7M 72% NTSC |
| agterlig | WLED , 15K hours , With LED Driver |
| omtrek vorm | Flat (PCBA Flat, T3.4~4.0mm) |
| gebruik vir | Laptop Gaming |
| herlaaitempo | 144Hz |
| raakskerm | Without |
| sein tipe | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , Connector 40 pins |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
