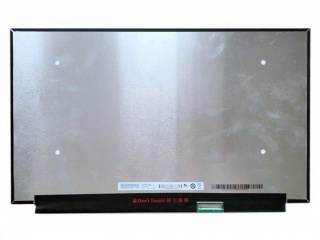

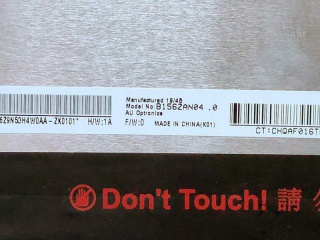

| Onderdeel nommer | B156ZAN04.0 |
| Handelsmerk | AUO |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 3840×2160 |
| Samestelling | LCM, LTPS TFT-LCD |
| Helderheid | |
| CR | 1200:1 |
| Kleure | 1.06B |
| Agterlig | WLED |
| Koppelvlak | eDP |
| vervaardiger | AUO |
| model naam | B156ZAN04.0 |
| skerm grootte | 15.6 inch |
| tipe skerm | LCM, LTPS TFT-LCD |
| pixel nommer | 3840(RGB)×2160 (UHD) 283PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 344.218 × 193.622 (H×V) |
| buitelyn (mm) | - |
| helderheid | - |
| kontras verhouding | 1200 : 1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| reaksie | 30 (Typ.)(Tr+Td) ms |
| goeie uitsig by | Symmetry |
| werksmodus | AHVA, Normally Black, Transmissive |
| kleurdiepte | 1.06B |
| agterlig | WLED , 15K hours , With LED Driver |
| omtrek vorm | Slim (PCBA Flat, T≤3.2mm) |
| gebruik vir | Laptop |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | eDP (4 Lanes) , eDP1.4a , Connector 40 pins |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
